Quick Details

  • Plate Type: Screen Printer
  • Condition: New
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: XF
  • Model Number: XF-80120
  • Usage: Paper Printer, PCB,PET HEATING TRANSFER FILM,MEMBRANE SWITCH, glass,plastic
  • Automatic Grade: Semi-Automatic
  • Color & Page: Single Color
  • Voltage: 380V
  • Gross Power: 4.15KW
  • Dimensions(L*W*H): 1860x1400x1900mm
  • Weight: 580KG
  • Certification: ISO9001
  • Warranty: 1year
  • After-sales Service Provided: Overseas third-party support available
  • structure: vertical structure
  • printing head drive: electrical motor
  • table material: stainless steel
  • vaccum control: turbine fan
  • scraper control: cylinder
  • printing stroke: adjustable
  • cylinder control: solenoid valve
  • printing head up and down: independant cylinder
  • printing speed control: frequency converter
  • vertical printing drive: electrical reduction gear motor

Packaging & Delivery

Packaging Details standard wooden case package:2060*1600*2100mm
Delivery Time usually 7days,it depends on the quantity

silk screen printing machine

Product Description
1.silk screen printing machine specification:

Technical parameters

Product Name

silk screen printing machine

Model

XF-80120

Condition

New

Automatic Grade

Semi Automatic

Color & Page

Single Color

Voltage

380V

Gross Power

4.15 KW

Dimensions(L*W*H)

1860*1400*1900mm

Weight

580kg

Warranty

one year

Printing area

1200*800mm

Maximal frame

950*1630mm

Printing thickness

30mm

Flat Size

1300*900mm

Printing frequency

1150Hr

Overprint accuracy

0.01mm

Flat precision

+-0.05mm

Printing pressure

0.6-0.8kg/square cm







Model

XF-4060

XF-5070

XF-6090

XF-80120

 XF-70140

XF-10200

Max Printing area(mm)

400*600

500*700

600*900

800*1200

 700*1400

 1000*2000

Printing table size(mm)

500*700

600*800

700*1000

900*1300

 800*1500

 1100*2100

Max frame(mm)

650*930

700*1100

850*1300

950*1630

 900*1600

 1350*2430

Flat precision(mm)

±0.05

±0.05

±0.05

±0.01

±0.01

±0.01

Printing thickness

(mm)

30

30

30

30

 30

 30

Over print accuracy

(mm)

0.01

0.01

0.01

0.01

 0.01

 0.01

Printing pressure

 kg/cm2

0.6-0.8

0.6-0.8

0.6-0.8

0.6-0.8

 0.6-0.8

 0.6-0.8

Printing frequency /Hr

1150

1050

950

850

 850

 700

Voltage/power V/kw

380/2.1

380/2.45

380/2.45

380/4.15

 380/4.15

 380/5.6

Equipment weight kg

380

450

500

580

 630

 750

Overall dimensions

(L*W*H)(mm)

1130*1050*1620

1280*1100*1620

1500*1160*1620

1860*1400*1900

 2060*1300*1900

 2600*1500*1680

 2.silk screen printing machine application:

1This silk screen printing machine series are widely used in the electronics, advertising, package printing, sports equipment, toys, stationary gifts, metal processing industries.
2silk screen printing machine suitable for printing on all kinds of flat materials, print on metal, glass, wood, paper, plastics, membranes switch, PCB, PET heating transfer film,tempered glass,auto windshield,light guide plate,DC card,nameplate ,also printing on bags,non-woven fabrics, ceramic decals, glazing plate glass, label and panel , refrigerator and air-conditioner decals,plastic sheet, and other products with the material of  PVC, which have high requirement in overprinting.
3.silk screen printing machine feature:
1 The silk screen printing machine platform is adjustable and moveable, which make it convenient to take the material.
2 vertical structure, printing plate moves up and down vertically, printing stroke is driven by imported electrical components.
3 The silk screen printing machine adopts micro computer integrated systerm, printing and plate moving up &down are driven by independent Current Source.
4 silk screen printing machine blade moving up and down is pneumatic controlled, printing stroke is controlled by photoelectric eyes, with independent adjustment.
5 silk screen printing machine procedures set three-mode, manual / semi-automatic /automatic settings, the time interval during printing is digital controlled.
6 silk screen printing machine designed Independent printing head moves up and down, which makes it easy to unload and clean the printing plate, scraper / ink reclaiming blade.
7 Double guide column master the clamps arm, and install the adjusting device to adjust the distance between plates at the same time, which is convenient to tune.
8This highly durable press comes with a 5 year warranty
9We also provide customised size

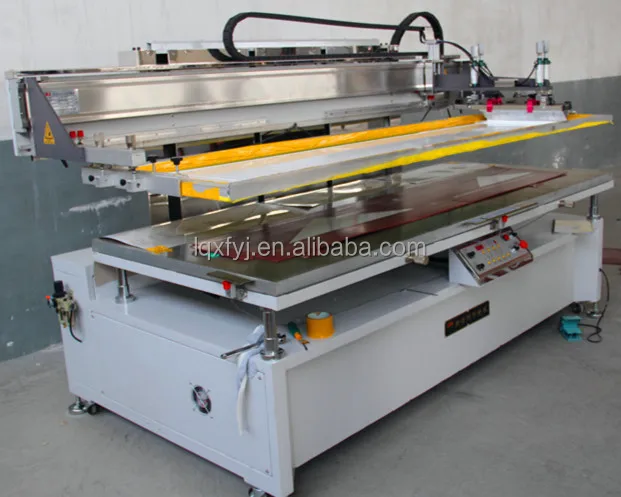

4.actual pictures:

5.silk screen printing machine printing sample:



Packaging & Shipping





Minimum Order Quantity:

1 Set/Sets

Port:

Qingdao

Packaging Details:

wooden case,Dimension 2060*1600*2100mm,Weight:600kg,it is suitble by sea.

Delivery Time:

one week

Payment Terms:

L/C,T/T,

Supply Ability:

100 Set/Sets per Month







Our Services



Why choose us:

1 We are the silk screen printing machine manufacturer for more than 15 years experience.
2 silk screen printing machine CE certified, uses Germany FESTO pneumatic parts.
3 Experienced international sales team, skilled in international business for many years.

After-sale service:

1 one-year warranty for parts ,and provide the technical support forever.
2 According to the requests of the consumers, the use and other aspects of technical guidance.
3 To ensure the supply of repair parts.
4 Responsible for the repair service.
5 On the product of "Three Guarantees".

Ce certification:



Company Information
Linqing Xinfeng Screen Printing Machinery Factory  located in Linqing China, professional manufacturer of semi auto silk screen printing machine and manual silk screen printing machine and related pre-press and post-press equipments since 1996, such as screen stretching machine, screen exposure machine, conveyor ir dryer and uv dryer.

Workshop corner


FAQ



1.What's the package way of this silk screen printing machine?

It will be packed into wooden case to protect the machine, if you also need other machines, they also can be packed with the machine together to save the freight.
2. what's the payment ways you accept?
You can make the payment by Credit Card ( place the order via Escrow), Wstern Union, Paypal, T/T(Telegraphic Transfer) etc.

if you make the large order, you can make the payment 30% T/T in advance, 70% balance against the copy of B/L.

3. Are you manufacturer or trading company?

We're manufacturer with 15 years experience in this screen printing field, our company is located in linqing city, China, which is next to jinan city. clients are welcomed to visit our factory.

4. Whether we accept special order according customised size?

As a export manager and engineer more than 15 years in this screen printing field, we are glad and capabale to meet the client's customised demand.
